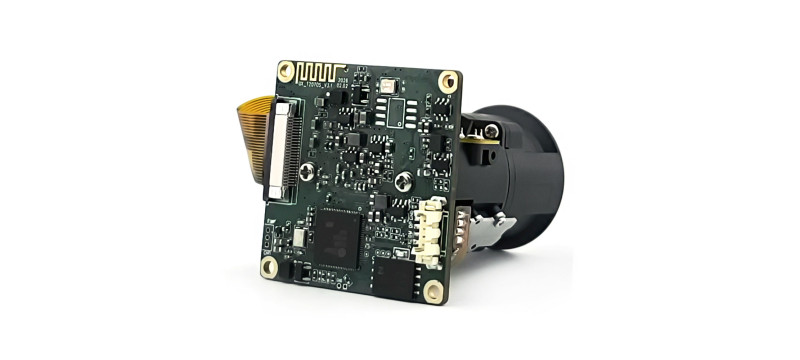

8M Zoom 3x USB Camera Module - ZCM8M30M30QX3

Description

ZCM8M30M30QX3 is an 8-megapixel USB 2.0 camera module with a 3× optical motorized zoom lens. It also features a built-in hybrid zoom function with up to 5× total magnification, combining optical and digital zoom.

The magnification ratio can be adjusted through the standard UVC interface. If you want to achieve greater image magnification, you can also use software such as OpenCV to perform additional digital zooming.

Technical Information:

Model	ZCM8M30M30QX3
Sensor	Sony 4K Image Sensor
Image Size	1/2.8 inch
Image Pixels & Resolution	8M / 3840(H) × 2160(V)
Image Formats	MJPEG / YUY2(YUYV)
Frame Rate	3840(H) × 2160(V) MJPG @ 30fps 1920(H) × 1080(V) MJPG @ 60fps 1280(H) × 720(V) MJPG @ 30fps 640(H) × 480(V) MJPG @ 30fps 1920(H) × 1080(V) YUY2 @ 5fps 1280(H) × 720(V) YUY2 @ 10fps
Shutter Type	Rolling shutter
Connecting Port	USB 2.0 Type-C
Operating Temperature	-20 ~ 50°C
Power Supply	USB bus power
Operation Voltage	DC 5V
Operating Current	350mA
Weight	35g
Operating System	WinXP / Win7 / Win8 / Win10 / Win11 Linux 2.6 or above

Note:
The estimated lead time is 14–21 days. For detailed lead time, please contact us .

8M Zoom 3x USB Camera Module - ZCM8M30M30QX3

FEATURES

- Sony 4K Image Sensor
- 8MP (3840x2160) USB 2.0 interface
- PCBA Dimensions: 38x38mm
- 3x Optical Zoom in capability
- Built in 2x Digital Zoom in capability
- UVC support
- Focus software Adjustable

- FL 3.5mm ~ FL11mm

- Plug&Play for Windows and Linux

Datasheet

Download
