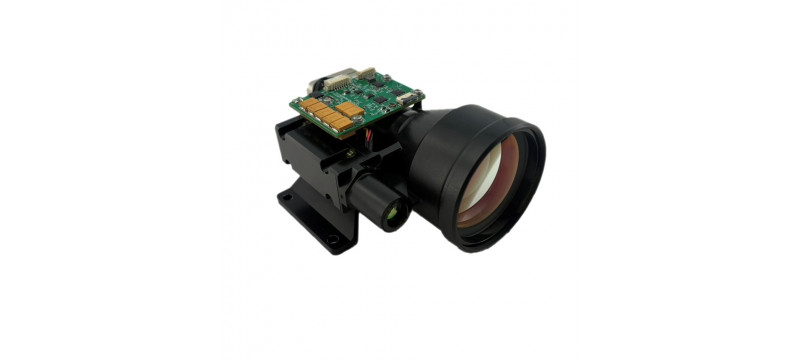

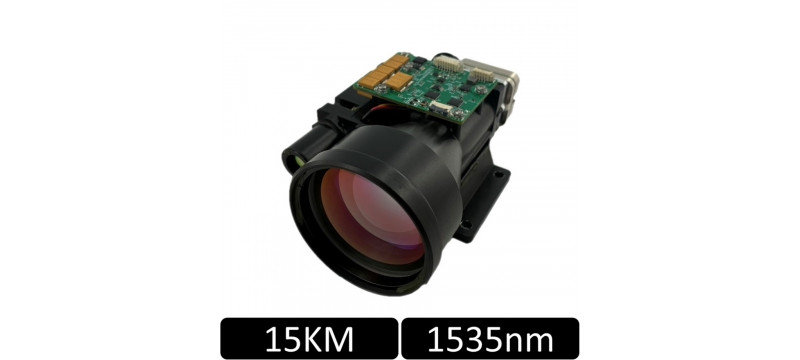

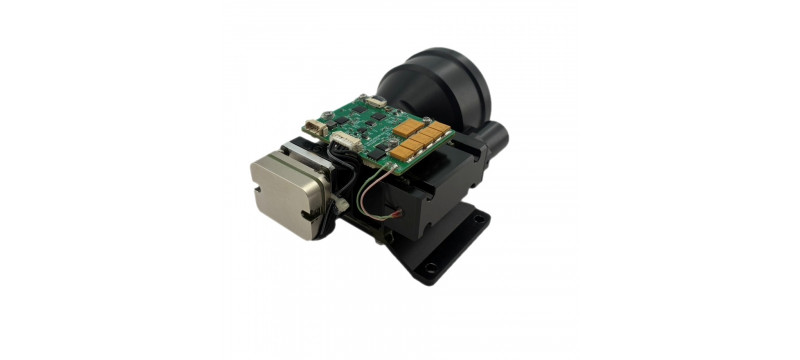

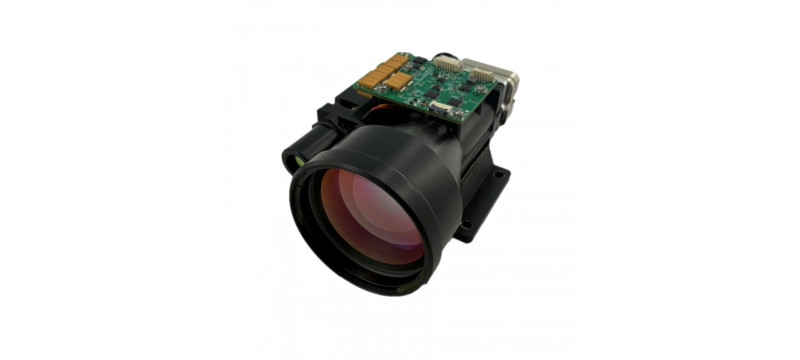

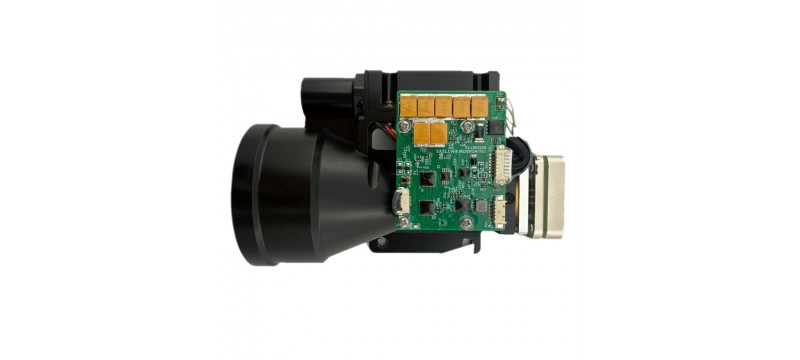

15km 1535nm High-End Laser Rangefinder Module - LRF15K10LH
The LRF15K10LH utilizes a 1535 nm laser with excellent atmospheric penetration, reducing the laser divergence to 0.3 mrad through precision optical components and enhancing the optical receiving design. This allows the rangefinder module to measure vehicle target (3x3m) at a distance of up to 15km, with a maximum measurement distance of ≥20km for building target (4x6m), compliant with laser safety class 1M standards.
The LRF15K10LH provides both TTL and RS422 communication interfaces for users to choose from. We also provide test software, a command set, and a communication protocol to facilitate subsequent development.
Functions
- Single Measurement
- Continuous Measurement
- Upon 3 Target detection
- Self-Inspection
- Blind zone Setting
- APD Sensor ON/OFF
Technical Information
| Model Name | LRF15K10LH |
| Max Range | ≥ 20000m for Building targets (4x6m) ≥ 15000m for Vehicle targets (2.3x2.3m) ≥ 5000m for Human targets (0.5x1.7m) ≥ 3000m for UAV targets (0.2x0.3m) |
| Min Range | 50m |
| Accuracy | ±2m |
| Frequency | 1~10Hz |
| Range resolution | ≥30 m |
| Detection probability | ≥98 % |
| False alarm rate | ≤1 % |
| Multi-target detection | Up to 3 target |
| Wavelength | 1535±5 nm |
| Divergence | 0.3 mrad |
| Laser Safety | Class 1M |
| Communication Interface | TTL / RS422 (option) |
| Input Voltage | DC 4.5 ~ 12V |
| Standby power consumption | ≤1.5W (Power ON) |
| Operating power consumption | ≤3.5 W |
| Peak power consumption | ≤10 W |
| Dimension | 125 × 85 × 58.5 mm |
| Weight | ≤400g |
| Operating Temperature | -40 ~ 70 °C |
| Storage Temperature | -55 ~ 75 °C |

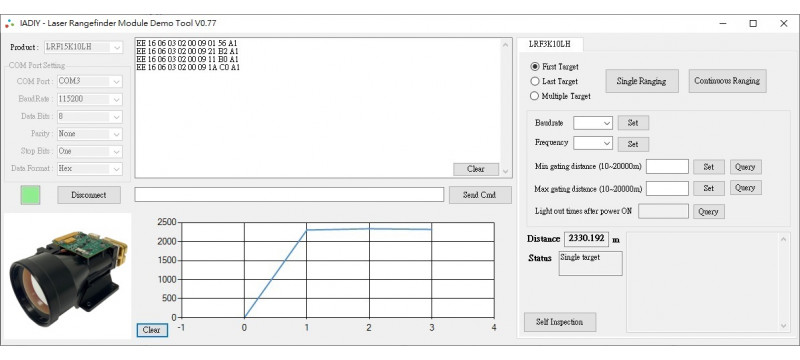

Demo Tool Download
LRF Test Tool.exe
Note:
For customization or mass production purchases, please
contact us.
|
Key Properties - Max Range: ≥ 20000m for Building targets |
Datasheet  |
- Deliver Time: Available, 7~21 Days
- Product ID: LRF15K10LH
