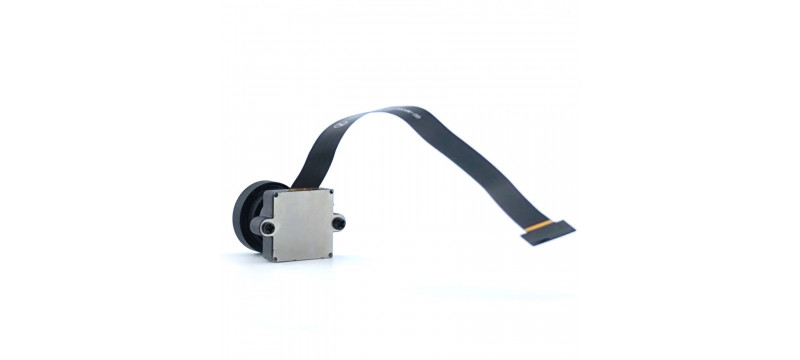

MCM48M240M12  is a 48 Mega Pixel MIPI CSI-2 camera module with an M12 lens slot. The lens can be selected for different FOV applications. With a suitable FOV angle, small compact size, and cost-effectiveness, it is a great solution for embedded applications.

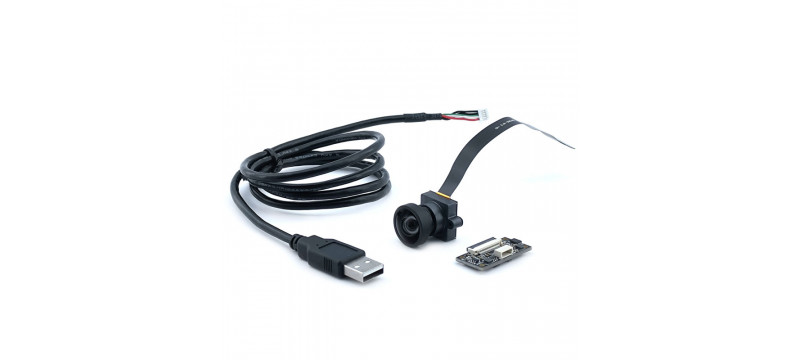

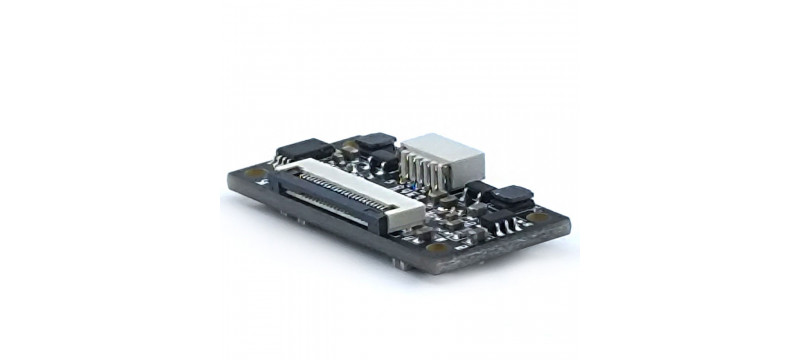

Among the available options is an additional USB adapter board that can be used to connect the camera module to a PC. Allows you to easily check the output of the camera module, including image quality and field of view. One thing to note, however, is that the adapter board is for demonstration or evaluation purposes only and it may not have the full functionality of the camera module.

Technical Information:

ModelMCM48M240M12
SensorIMX586
Image Size1/2 inch
Cell Size0.8 um
Image Pixels & Resolution48M / 8000(H) x 6000(V)
Image Formats10/8-bit Raw Format
Frame Rate8000(H) x 6000(V) @ 30fps
6000(H) x 4000(V) @ 30fps
4000(H) x 3000(V) @ 60fps
3840(H) x 2160(V) @ 90fps
Max S/N RatioTBD
Dynamic Range70 dB
SensitivityTBD
Shutter TypeRolling Shutter
Connecting Port0.5mm / 24pins FPC connector
Operating Temperature-20 ~ 60°C
Core VoltageDC 1.2V
Analog VoltageDC 2.8V
IO VoltageDC 1.8V
Operating Current< 420 mA
Camera Dimension17 x 24 mm

Note:
The estimated lead time is 14 ~ 21 days. For detailed lead time, please contact us.

MIPI CSI-2 Camera Module 48MP Camera Module - MCM48M240M12
FEATURES
- Sony IMX586 Image Sensor
- 48MP (8000x6000) 4 lanes MIPI interface
- Pin Out: 24pin, pitch 0.5mm
- Total length: 100mm
- Lens Type: M12 holder
- If you need custom FPC length or
  different FOV angle, please contact us
- Customized pin arrangement is also welcome

Datasheet

Download
Based on 0 reviews. - Write a review
$91.0
10 or more $73.0
50 or more $64.0
200 or more $52.0
1000 or more $46.0
  • Deliver Time: Available, 7~21 Days
  • Product ID: MCM48M240M12

Available Options

Add to Cart
Buy Now Contact us
Add to Wish List Compare this Product
Note:

We also support custom made service as your requirements.

For more details, please contact us.
