Raspberry Pi Ultra Low Lights STARVIS 2M Camera Module - MCM2M60M12F1

Raspberry Pi Ultra Low Lights STARVIS 2M Camera Module - MCM2M60M12F1
Raspberry Pi Ultra Low Lights STARVIS 2M Camera Module - MCM2M60M12F1
Raspberry Pi Ultra Low Lights STARVIS 2M Camera Module - MCM2M60M12F1
Raspberry Pi Ultra Low Lights STARVIS 2M Camera Module - MCM2M60M12F1
Raspberry Pi Ultra Low Lights STARVIS 2M Camera Module - MCM2M60M12F1
Raspberry Pi Ultra Low Lights STARVIS 2M Camera Module - MCM2M60M12F1
Raspberry Pi Ultra Low Lights STARVIS 2M Camera Module - MCM2M60M12F1
Raspberry Pi Ultra Low Lights STARVIS 2M Camera Module - MCM2M60M12F1
Raspberry Pi Ultra Low Lights STARVIS 2M Camera Module - MCM2M60M12F1
Raspberry Pi Ultra Low Lights STARVIS 2M Camera Module - MCM2M60M12F1

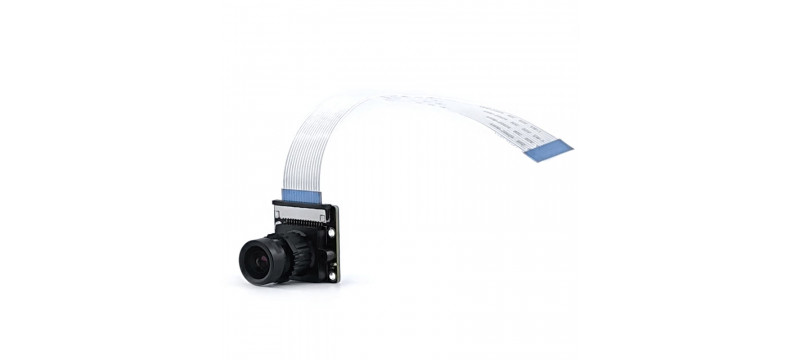

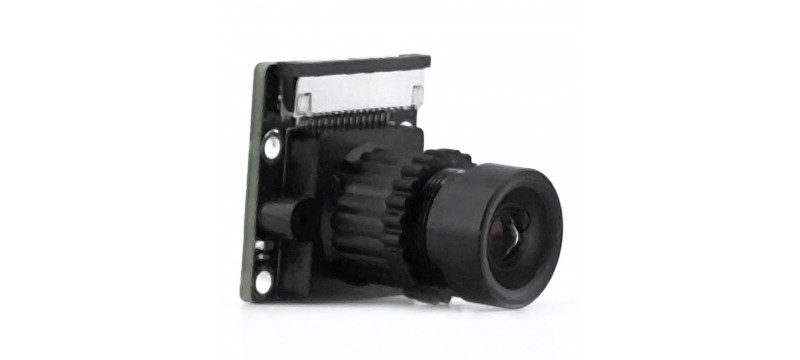

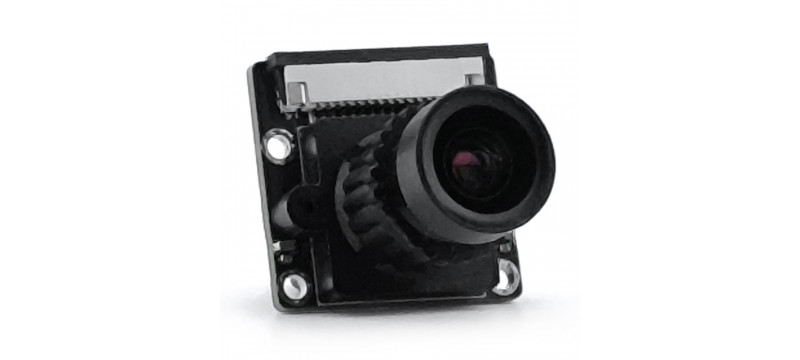

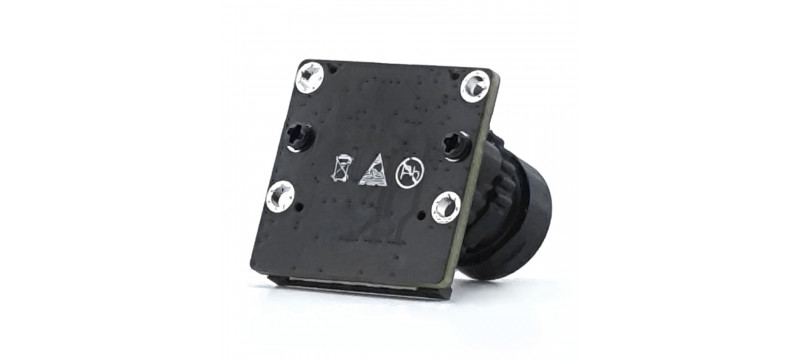

MCM2M60M12F1 is a 2-megapixel MIPI ultra low-light STARVIS camera module, specifically designed for use in low-light environments. It features an M12 lens mount, allowing flexible lens selection to meet different field-of-view (FOV) requirements. With its compact size, cost-effectiveness, and customizable optics, it is an excellent solution for embedded applications.

Powered by IMX290 cmose sensor, this module belongs to the well-known Raspberry Pi Camera Module . It is fully compatible with Raspberry Pi boards, and the offical Raspberry Pi OS already includes driver support - allowing easy setup with just minimal configuration. MCM2M60M12F1 works with Raspberry Pi are the perfect way to get into Raspberry Pi video.


Technical Information:

ModelMCM2M60M12F1
SensorIMX290
Image Size1/2.8 inch
Pixel Size2.9 x 2.9 um
Image Pixels & Resolution2.13M / 1945(H) x 1097(V)
Image Formats10 /12-bit Raw Bayer
Frame Rate1920(H) x 1080(V) @ 60fps
1280(H) x 720(V)   @ 60fps
800(H)   x 600(V)   @ 60fps
640(H)   x 480(V)   @ 60fps
Max S/N Ratio41.5 dB
Dynamic Range71 dB
Sensitivity1300 mV (geeen pixel)
Shutter TypeRolling Shutter
Connecting Port1.0mm / 15pins FPC connector
Operating Temperature-30 ~ 70°C
Core VoltageDC 1.2V
Analog VoltageDC 2.9V
IO VoltageDC 1.8
Operating Current250~300 mA
Camera Dimension25x25mm

Note:
The estimated lead time is 14 ~ 21 days. For detailed lead time, please contact us.

Raspberry Pi Ultra Low Lights STARVIS 2M Camera Module - MCM2M60M12F1
FEATURES
- Sony IMX290 Image Sensor
- 2 MP (1920 x 1080) MIPI CSI2 interface
- Pin Out: 15pin, pitch 1.0mm
- Lens:M12 holder

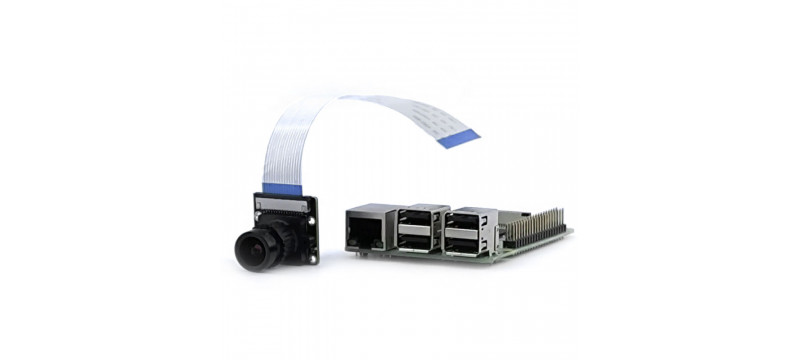

- Fully compatible with Raspberry Pi Platform
- If you have any special requirement, please contact us
Based on 0 reviews. - Write a review
$50.0
10 or more $40.0
50 or more $36.0
100 or more $30.0
200 or more $24.0
  • Deliver Time: Available, 7~21 Days
  • Product ID: MCM2M60M12F1

Available Options

Add to Cart
Buy Now Contact us
Add to Wish List Compare this Product
Note:

We also support custom made service as your requirements.

For more details, please contact us.
