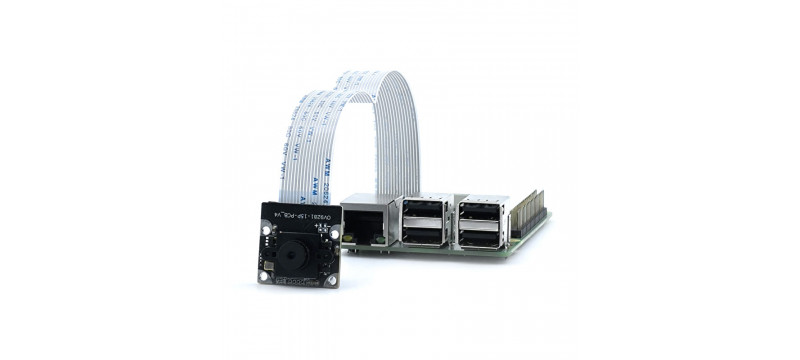

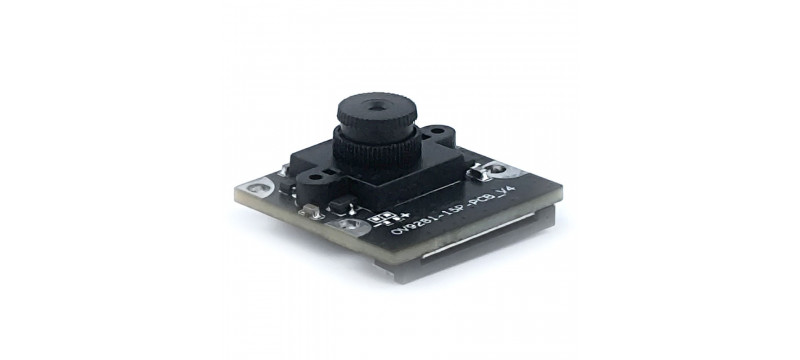

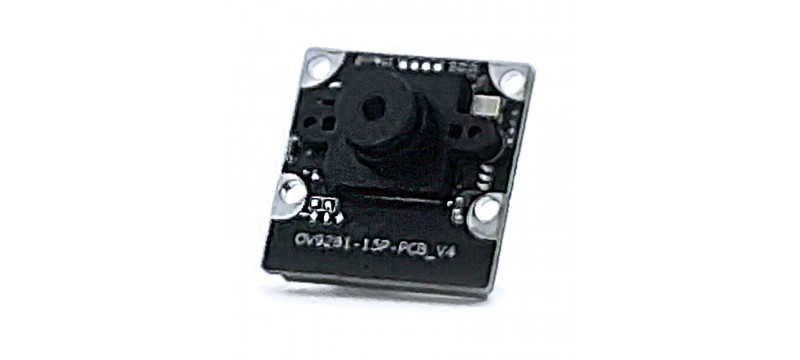

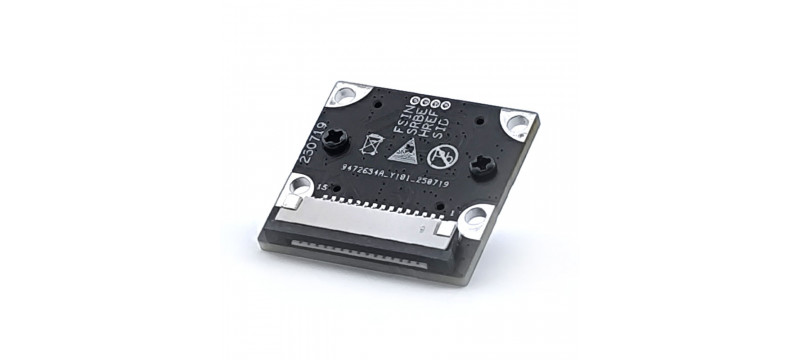

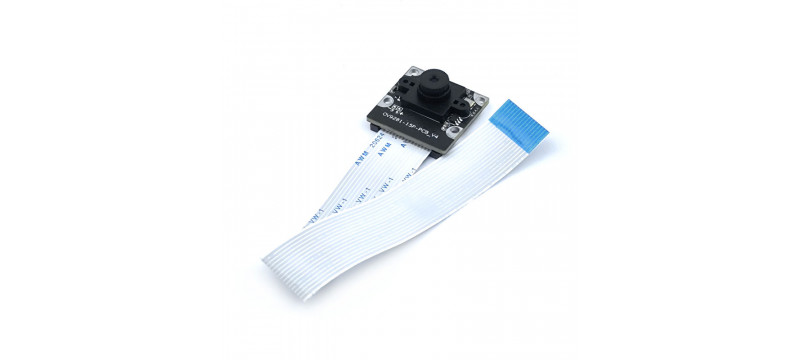

MCM1M210M7F1 is a 1 MegapPixel MIPI Global Shutter camera module featuring an M7 or M12 lens mount, allowing flexible lens selection to meet different FOV (Field of View) requirements. With its compact size, cost effective , and customizable optics, it is a great solution for embedded applications.

Powered by OV9281 cmose sensor, this module belongs to the well-known Raspberry Pi Camera Module . It is fully compatible with Raspberry Pi boards, and the offical Raspberry Pi OS already includes driver support - allowing easy setup with just minimal configuration. MCM1M210M7F1 works with Raspberry Pi are the perfect way to get into Raspberry Pi video.


Technical Information:

ModelMCM1M210M7F1
SensorOV9281
Image Size1/4 inch
Image Pixels & Resolution1M / 1280(H) x 800(V)
Image Formats8/10-bit Raw Bayer
Frame Rate1280(H) x 800(V) @ 120fps
1280(H) x 720(V) @ 130fps
640(H) x 480(V) @ 180fps
640(H) x 400(V) @ 210fps
Max S/N Ratio37 dB
Dynamic Range68 dB @ 8x gain
Sensitivity600 mV/Lux-sec
Shutter TypeGlobal Shutter
Connecting Port1.0mm / 15pins FPC connector
Operating Temperature-30 ~ 70°C
Core VoltageDC 1.2V
Analog VoltageDC 2.8V
IO VoltageDC 1.8 / 2.8V
Operating Current170~200 mA
Camera Dimension8x8mm

Note:
The estimated lead time is 14 ~ 21 days. For detailed lead time, please contact us.

Raspberry Pi MIPI Camera Module 1M MONO Global Shutter - MCM1M210M7F1
FEATURES
- Omnivision OV9281 Image Sensor
- 1MP (1280x800) MIPI CSI2 interface
- Pin Out: 15pin, pitch 1.0mm
- Lens: M7/M12 holder
- Fully compatible with Raspberry Pi Platform
- If you have any special requirement, please contact us
Based on 0 reviews. - Write a review
$33.0
10 or more $30.0
50 or more $28.0
200 or more $26.0
1000 or more $22.0
  • Deliver Time: Available, 7~21 Days
  • Product ID: MCM1M210M7F1
