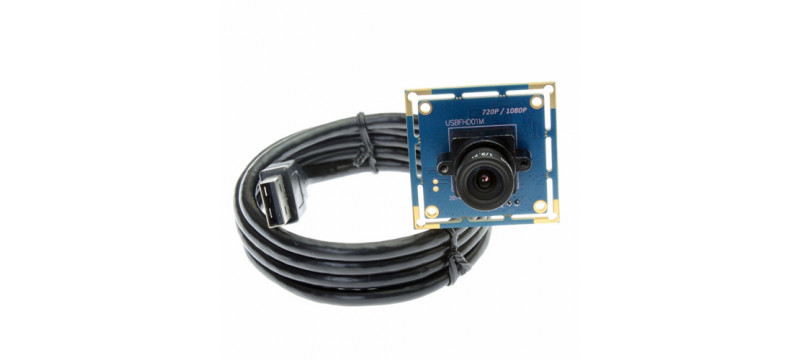

2M USB Auto Focus Camera Module – CM2M120M12Q

2M USB Auto Focus Camera Module – CM2M120M12Q
2M USB Auto Focus Camera Module – CM2M120M12Q
2M USB Auto Focus Camera Module – CM2M120M12Q
2M USB Auto Focus Camera Module – CM2M120M12Q
2M USB Auto Focus Camera Module – CM2M120M12Q
2M USB Auto Focus Camera Module – CM2M120M12Q
2M USB Auto Focus Camera Module – CM2M120M12Q
2M USB Auto Focus Camera Module – CM2M120M12Q


Technical Information：
Product ID  CM2M120M12Q
Sensor  OV2710
Image Size  1/2.7 inch
Image Pixels & Resolution  2M / 1920(H) x 1080(V)
Image Formats  MJPEG / YUY2(YUYV)
Frame Rate  1920x1080 FHD MJPEG@30fps
 640x480 VGA MJPEG@120fps
Max S/N Ratio  39dB
Dynamic Range  69dB
Min. illumination  0.05 lux
Sensitivity  3.3V/lux-sec@550nm
Shutter Type  Electronic rolling shutter /
 Frame exposure
Connecting Port
  USB2.0 High Speed
Plug & Play  UVC(USB Video Class) support
Operating Temperature  0° ~ 65°C
Operating Voltage  DC5V
Operating Current  120mA~220mA
PCBA Dimensions  38x38mm(Compatible 32x32mm)
Operating System Request  WinXP/Vista/Win7/Win8/Win10
 Linux with UVC(above 2.6.26)
 MAC-OS X 10.4.8 or later
 WinCE with UVC
 Android 4.0 or above with UVC
2M USB Auto Focus Camera Module – CM2M120M12Q

FEATURES

2M(1920x1080) FHD Image Sensor OV2710
Dimensions: Square 38X38mm (Compatible 32X32mm）
M12 S-mount Lens Type
- Standard: FL3.6mm Fixed Focus
- Option: FL 2.1 /2.8 /3.6/ 6.0/ 8.0/ 12/ 16
               FOV(D)150°/ FOV(D)180°
               Auto Focus: FOV(H)45°
UVC support, Plug & Play for Windows and Linux

Datasheet

Download

Based on 0 reviews. - Write a review
$50.0
10 or more $45.0
50 or more $42.0
200 or more $40.0
  • Deliver Time: Available, 7~14 Days
  • Product ID: CM2M120M12Q

Available Options

Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Note:

We also support custom made service as your requirements.

For more details, please contact us.

Tags: camera-modules , USB-camera-module
