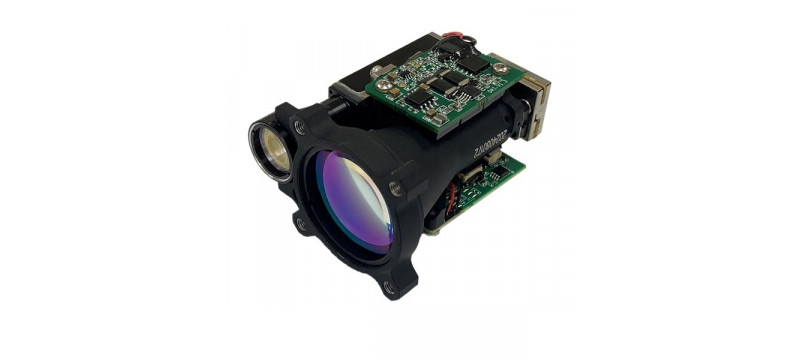

8km 1535nm High-End Laser Rangefinder Module - LRF8K10LH
The LRF8K10LH utilizes a 1535nm laser with excellent atmospheric penetration, and its laser divergence angle is reduced to 0.3mrad through precision optics. This allows the ranging module to measure targets of size 2.3x2.3 (NATO targets) at a distance of up to 8000m, with a maximum measurement distance of ≥10000m, compliant with laser safety class 1 standards.
Functions
- Single Measurement
- Continuous Measurement
- First/Last/Multiple Target Mode
- Baudrate Setting
- Frequency Setting
- Gating Distance Setting
Technical Information
| Model Name | LRF8K10LH |
| Max Range | ≥ 10000m for Builuding targets (4x6m) ≥ 8000m for NATO targets (2.3x2.3m) ≥ 4500m for Human targets (0.5x1.7m) ≥ 2600m for UAV targets (0.2x0.3m) |
| Min Range | 20m |
| Accuracy | ±1m |
| Frequency | 1~10Hz |
| Range resolution | ≥30 m |
| Detection probability | ≥98 % |
| False alarm rate | ≤1 % |
| Multi-target detection | Up to 3 target |
| Wavelength | 1535±5 nm |
| Divergence | 0.3±0.05 mrad |
| Laser Safety | Class 1/1M |
| Communication Interface | 3.3V TTL (UART) |
| Input Voltage | DC 4.5 ~ 16V |
| Standby power consumption | ≤1 mW |
| Operating power consumption | ≤2 W |
| Peak power consumption | ≤10 W |
| Dimension | 65 × 48 × 32 mm |
| Weight | ≤58±1 g |
| Operating Temperature | -40 ~ 55 °C |
| Storage Temperature | -55 ~ 75 °C |

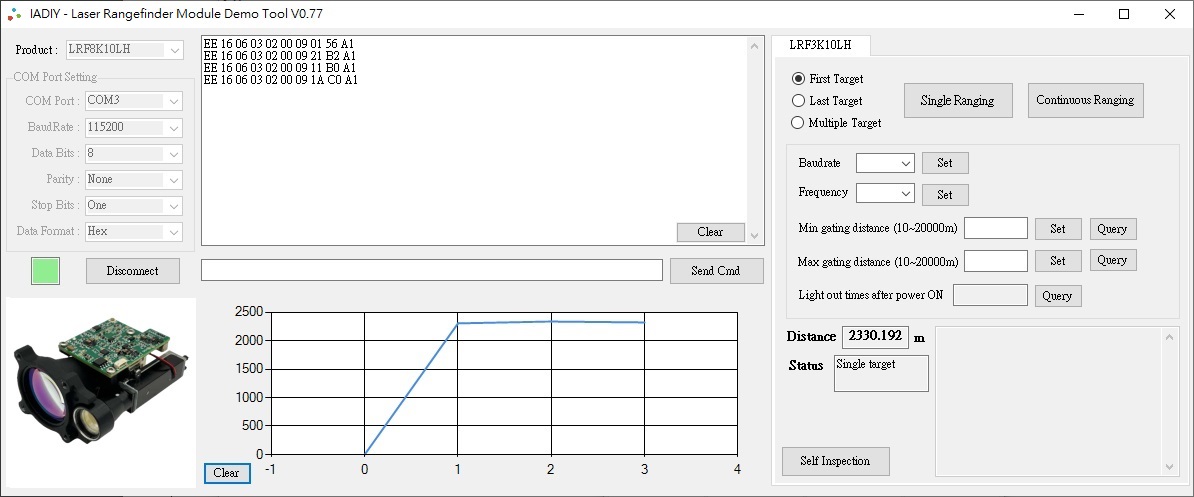

Demo Tool Download
LRF Test Tool.exe
Note:
For customization or mass production purchases, please
contact us.
|
Key Properties - Max Range: ≥ 10000m for Building targets |
Datasheet  |
- Deliver Time: Available, 7~21 Days
- Product ID: LRF8K10LH
