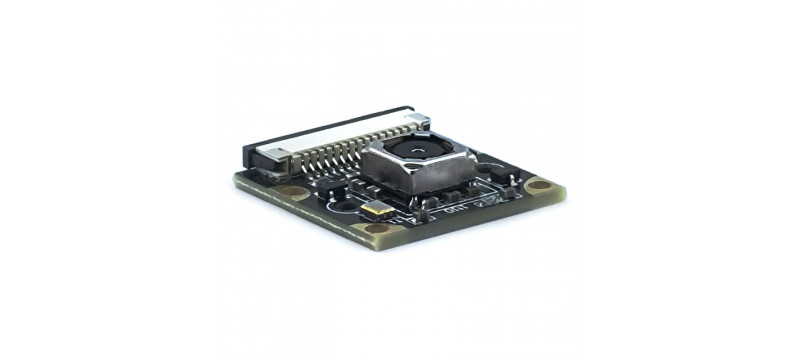

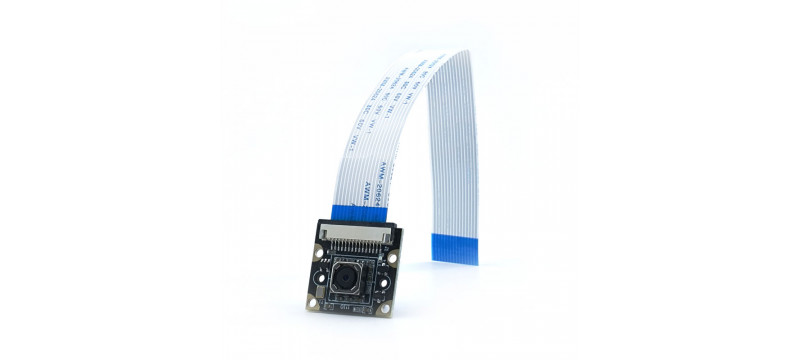

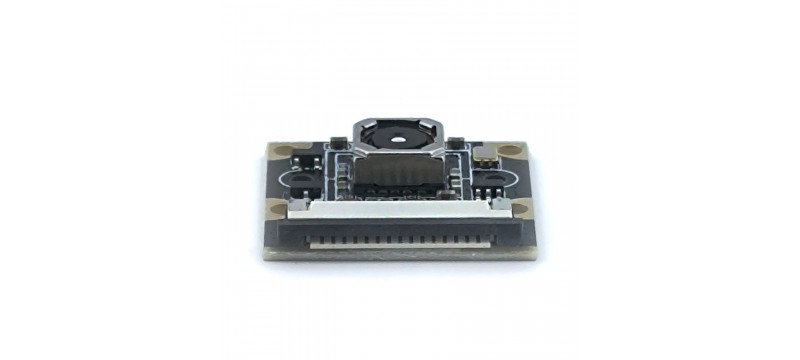

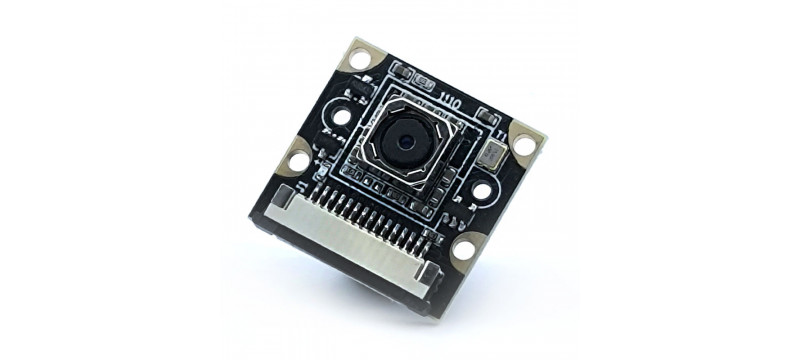

MCM5M120M7F1 is a 5 MegapPixel MIPI camera module featuring an M7 lens mount, allowing flexible lens selection to meet different FOV (Field of View) requirements. With its compact size, cost effective , and customizable optics, it is a great solution for embedded applications.

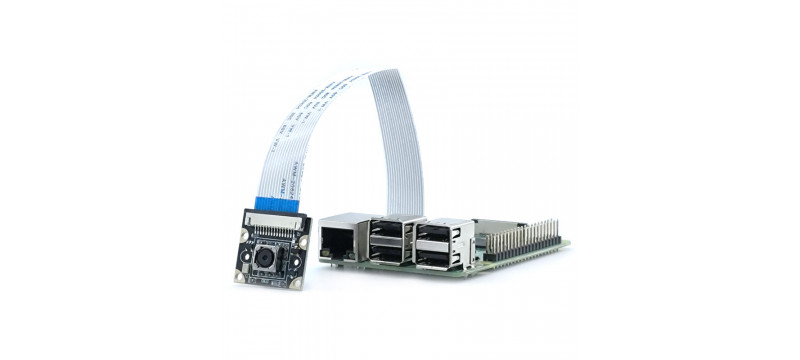

Powered by OV5647 cmose sensor, this module belongs to the well-known Raspberry Pi Camera Module V1. It is fully compatible with Raspberry Pi boards, and the offical Raspberry Pi OS already includes driver support - allowing easy setup with just minimal configuration. MCM5M120M7F1 works with Raspberry Pi are the perfect way to get into Raspberry Pi video.


Technical Information:

ModelMCM5M120M7F1
SensorOV5647
Image Size1/4 inch
Image Pixels & Resolution5M / 2592(H) x 1944(V)
Image Formats8- /10- bit RGB RAW output
Frame Rate2592(H) x 1944(V) @ 15fps
1920(H) x 1080(V) @ 30fps
1280(H) x 960(V) @ 45fps
1280(H) x 720(V) @ 60fps
640(H) x 480(V) @ 90fps
320(H) x 240(V) @ 120fps
Max S/N Ratio36 dB
Dynamic Range68 dB @ 8x gain
Sensitivity600 mV/Lux-sec
Shutter Typerolling shutter

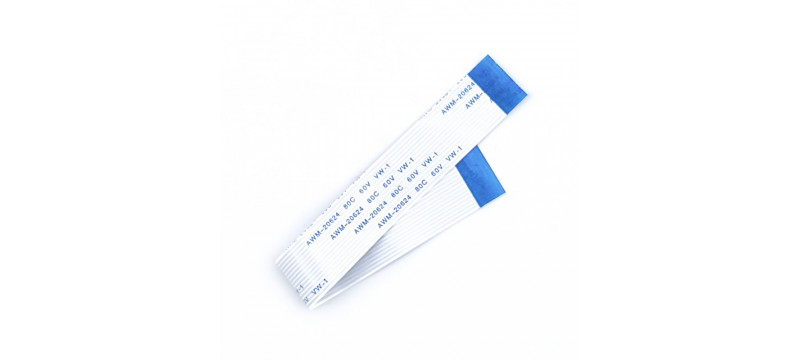

Connecting Port1mm / 15pins FPC connector
Operating Temperature-30 ~ 70°C
Core VoltageDC 1.5V
Analog VoltageDC 2.8V
IO VoltageDC 1.8 / 2.8V
Operating Current140 mA
Camera Dimension8.5x8.5mm

Note:
The estimated lead time is 14 ~ 21 days. For detailed lead time, please contact us.

Raspberry Pi MIPI Camera Module 5M – MCM5M120M7F1
FEATURES
- Omnivision OV5647 Image Sensor
- 5MP (2592x1944) MIPI CSI2 interface
- Pin Out: 15pin, pitch 1.0mm
- Lens: M7/M12 holder
- Fully compatible with Raspberry Pi Platform
- If you have any special requirement, please contact us
Based on 0 reviews. - Write a review
$14.0
10 or more $12.0
50 or more $10.0
200 or more $8.5
1000 or more $7.0
  • Deliver Time: Available, 7~21 Days
  • Product ID: MCM5M120M7F1

Available Options

Add to Cart
Buy Now Contact us
Add to Wish List Compare this Product
Note:

We also support custom made service as your requirements.

For more details, please contact us.


Tags: camera-modules , mipi-camera-module
