Water Proof Laser Line Module

Water Proof Laser Line Module
Water Proof Laser Line Module
Water Proof Laser Line Module
Water Proof Laser Line Module
Water Proof Laser Line Module
Water Proof Laser Line Module

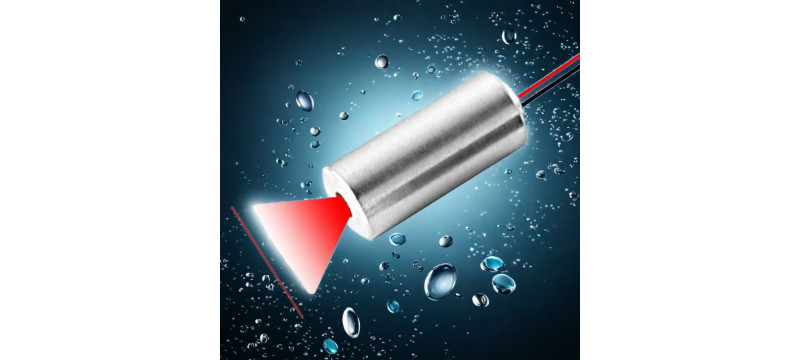

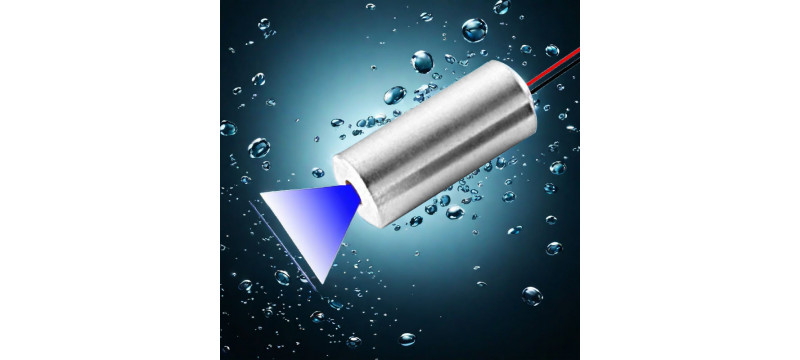

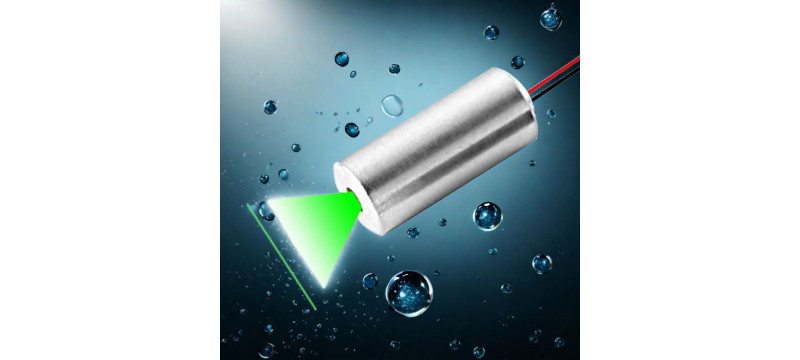

This product integrates three laser line modules with different wavelengths: red, green, and blue, making it suitable for various applications. Customization options such as adjusting the line angle and power are available to meet your specific needs. Now, with added waterproof functionality, you can use this product confidently in any environment.

We offer a wide range of customization services to meet different usage scenarios. If you have any additional requirements or questions, please feel free to contact us at any time.

Here list water proof laser modules.

Product ID Dia.
λ(nm) Type
Power
Pattern pdf Buy
LW9B450H30Lx 9mm 450 H <30mw
Line
LW9B450H80Lx
9mm450 H <80mw
Line
LW9G520S10Lx
9mm520 S <10mw
Class1M
Line
LW9G520H30Lx
9mm 520H<30mW Line
LW9R635S10Lx 9mm 635 S <10mW
Class1M
Line
LW9R635H30Lx 9mm 635 H <30mW Line

Note: Above not listed or custom laser module, laser illumination module, please contact us.

Product Tab
Outline dimensions:


Water Proof Laser Line Module

FEATURES

Module Wavelength (λ):450nm / 520nm / 635nm
Diameter:9mm
Voltage:3V~5V
Laser Diode Power:10mW / 30mW / 80mW
Line Span Angle:30° / 60° / 90°

Ingress Protection Rating
(IP Code)

Starting From $30.0
  • Deliver Time: Available, 7~21 Days
  • Product ID: Water-Proof-Laser-Line-Module

Available Options

Reset options
Note:

We also support custom made service as your requirements.

For more details, please contact us.
