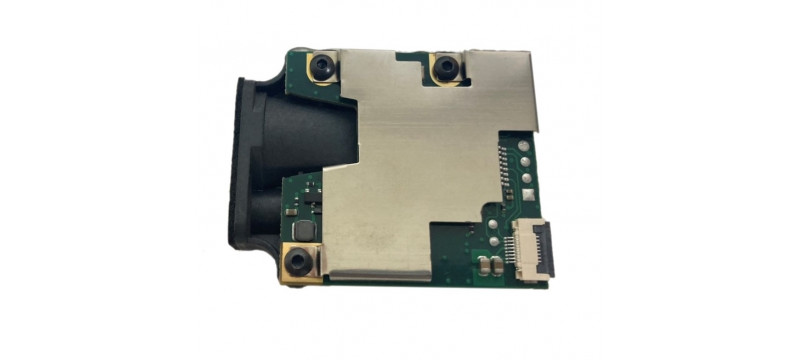

LRFX0M20PD is a high-precision laser rangefinder module that use dual-laser calibration design. It can eliminate environmental interference and electronic system errors, and has better stability and accuracy compared to general single-laser rangefinder modules. The dual-laser calibration design has a closed-loop feedback circuit, which can eliminate the feedback problem of open-loop circuits and measurement repetition errors of the module, thus making LRFX0M20PD more advantageous and able to maintain absolute accuracy under different environmental conditions. .



  Features :

  • Dual-laser calibration
  • Phase-shift measurement
  • Single & Continuous measurement
  • IP40 dust-proof design
  • Compact and lightweight design
  • Custom made service available

Technical Information :

  Model Name LRF80M20PD / LRF140M20PD / LRF200M20PD
  Measurement Range
0.05m ~ 80m / 140m / 200m
  Measurement Frequency 1~20 Hz
  Measurement Accuracy ±1mm @ 40m
±2mm @ 80m
±7mm @ 140m
±15mm @ 200m
  Wavelength 650 nm
  Laser Safety Class 2 ,<1mW
  Measurement Method
Phase-shift (with dual-laser calibration)
  Communication Interface TTL (UART)
  Input Voltage 3.3~4.2V DC
  Operating Current 100mA
  Dimensions 42 x 42 x 18mm
  Weight 60g
 Protection IP40
  Operating Temperature -10 ~ 50 °C
  Storage Temperature -20 ~ 80 °C

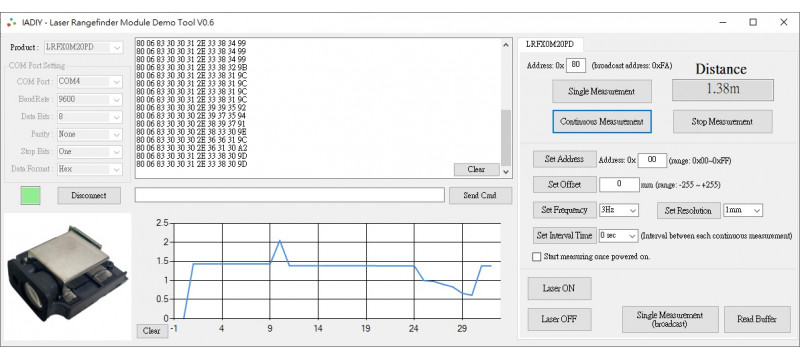

Demo Tool Download :

 LRF Test Tool.exe



Sample Code :

 LRFX0M20PD Sample Code for Python


Note:

If you need please feel free to contact us.

80/140/200m Dual-Laser Calibration Laser Rangefinder Module - LRFX0M20PD

Key Properties

- Measurement Range: 0.05m ~ 80/140/200m
- Frequency: 1~20Hz
- Accuracy: ±1mm @ 40m
                   ±2mm @ 80m
                   ±7mm @ 140m
                   ±15mm @ 200m

- Wavelength: 650 nm
- Laser Safety: Class 2 (<1mW)
- Communication Interface: TTL (UART)
- Dual laser calibration

Datasheet

Starting From $80.0
10 or more $66.0
50 or more $58.0
200 or more $50.0
  • Deliver Time: Available, 7~21 Days
  • Product ID: LRFX0M20PD

Available Options

Reset options
Note:

We also support custom made service as your requirements.

For more details, please contact us.
