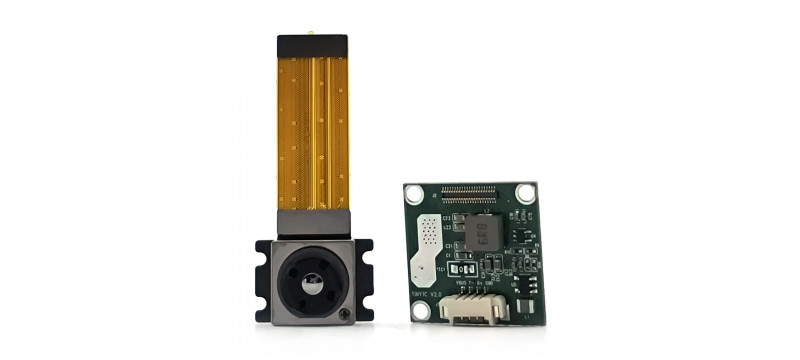

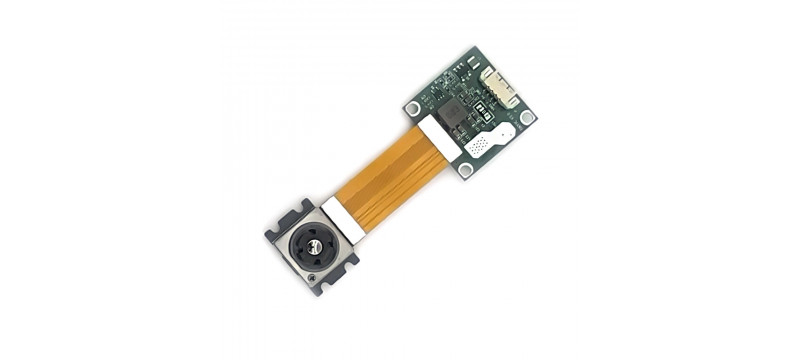

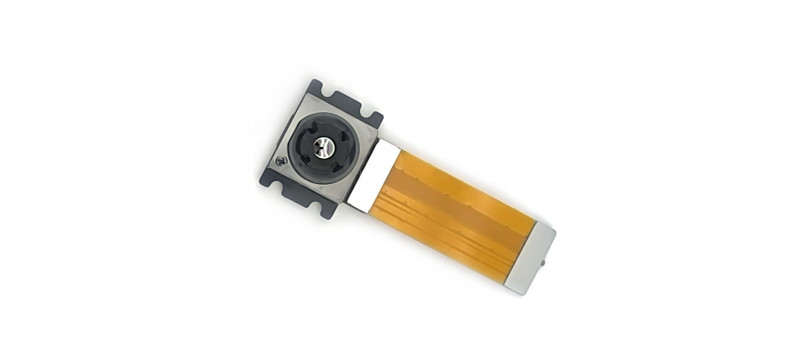

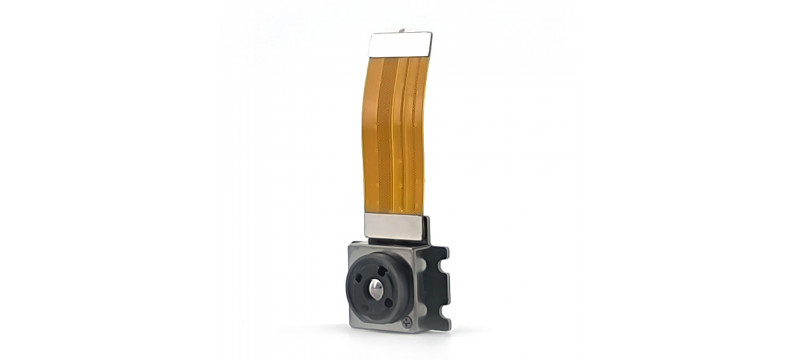

Thermal Measurement Imaging Module – TCM50K25DR

The TCM50K25DR is a compact long-wave infrared (LWIR) thermal imaging module designed to deliver reliable temperature measurement and clear thermal imaging for a wide range of embedded applications. Built on a 256×192 uncooled VOx detector with 12 µm pixel size, it offers good image clarity and thermal sensitivity (NETD ≤50 mK), making it suitable for both general monitoring and precise temperature analysis. The integrated 3.2 mm lens provides a practical field of view for common use cases such as industrial inspection, handheld devices, and smart sensing.

The module operates at up to 25 fps and includes built-in image processing, helping improve image stability, reduce noise, and enhance detail without requiring heavy external processing. It supports full-frame temperature output along with basic analysis functions like maximum, minimum, and center-point measurement. With dual measurement modes, users can choose between higher image quality or a wider temperature range depending on application needs, offering flexibility across different scenarios.

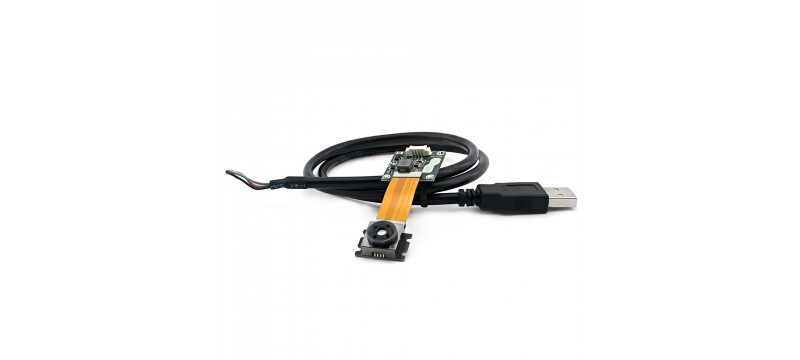

For system integration, the TCM50K25DR uses a DVP interface with I2C control, making it straightforward to integrate into embedded platforms. For evaluation and faster development, the TCM50K25DR-UKit provides a simple DVP-to-USB solution, allowing direct connection to a PC. With its small form factor, low power consumption, and balanced performance, the TCM50K25DR is a practical choice for engineers and product teams working on thermography, industrial monitoring, smart hardware, and AIoT applications.

Technical Information

Disclaimer: Product images and specifications are for reference only and may be subject to change without notice due to ongoing product improvements. For the most current information, please contact us.
